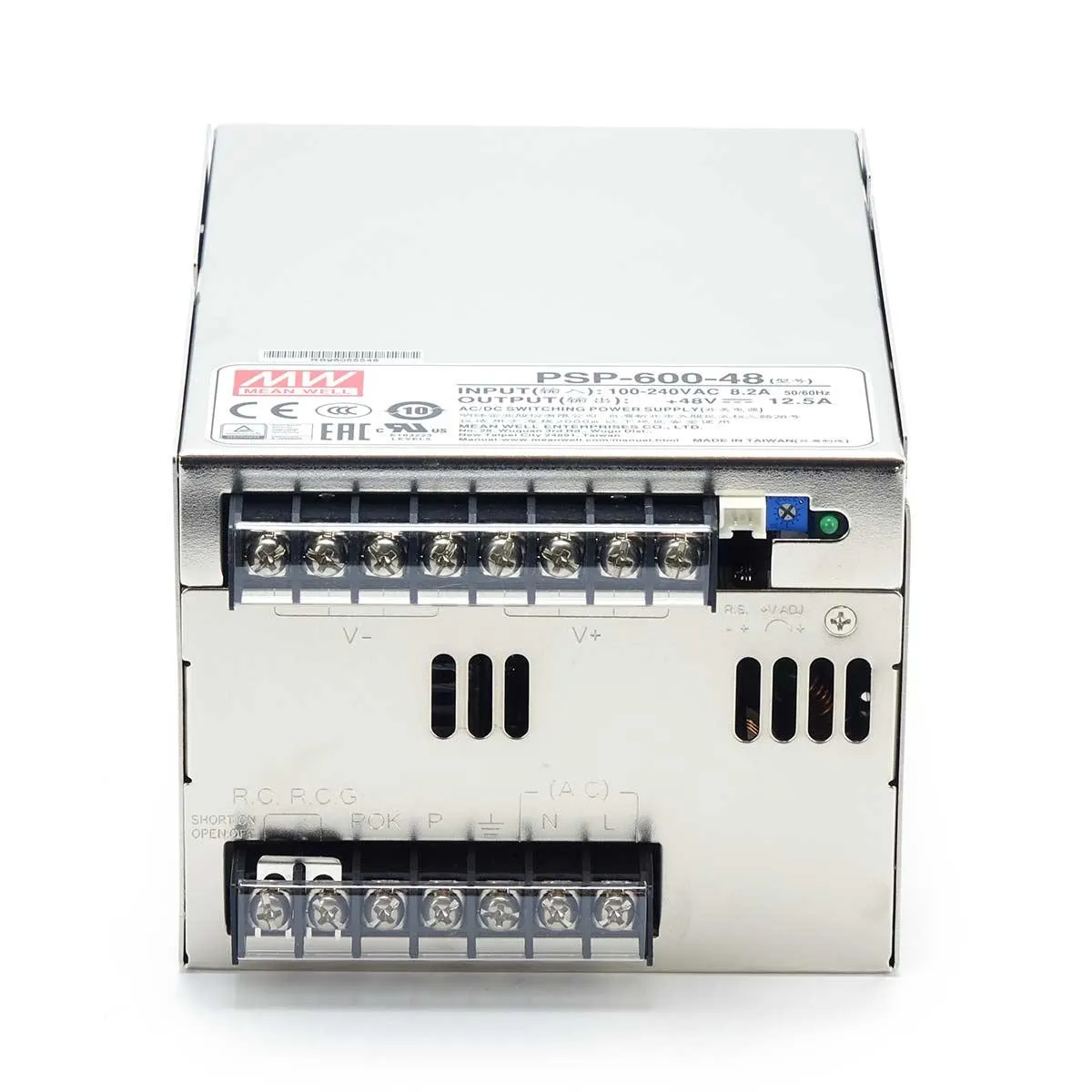

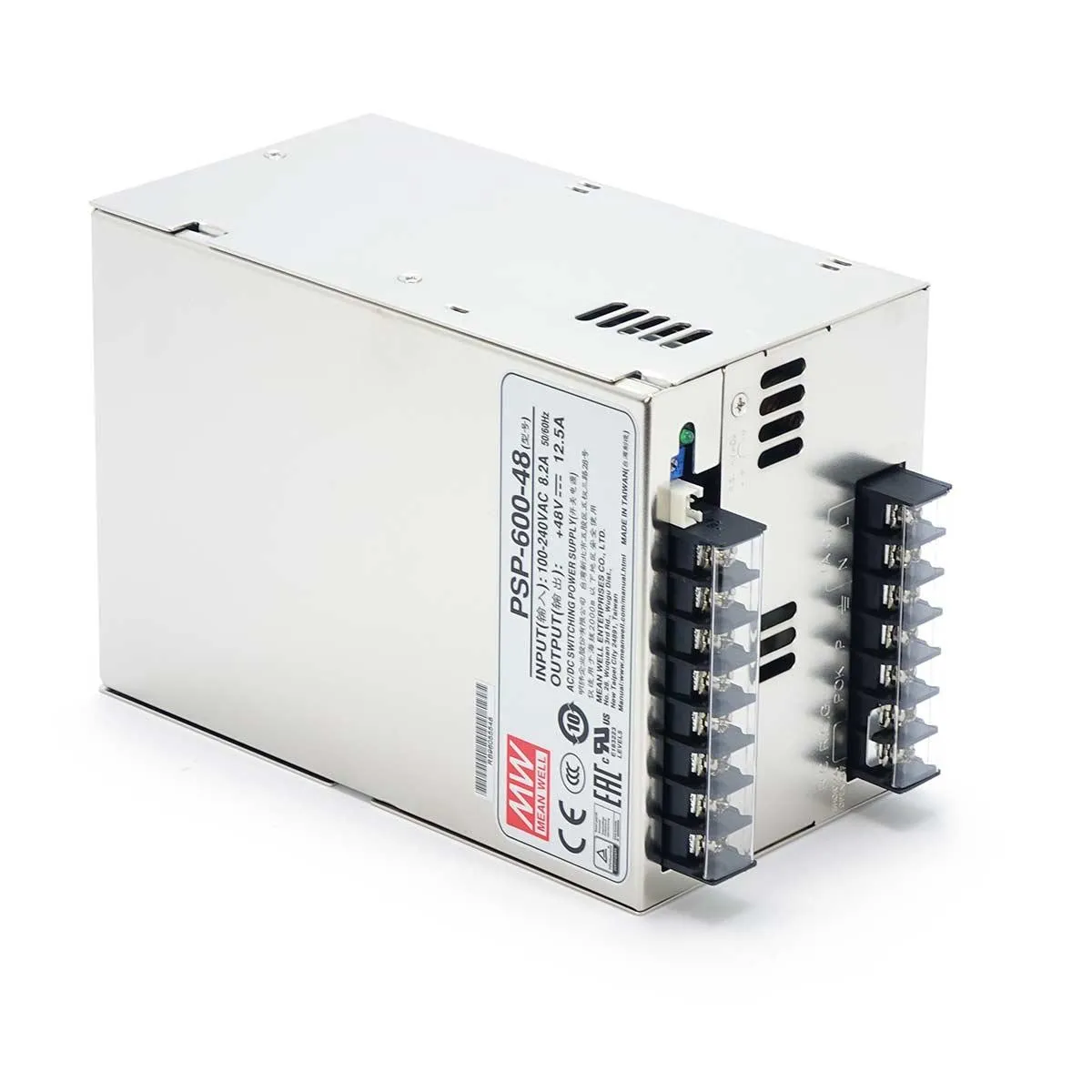

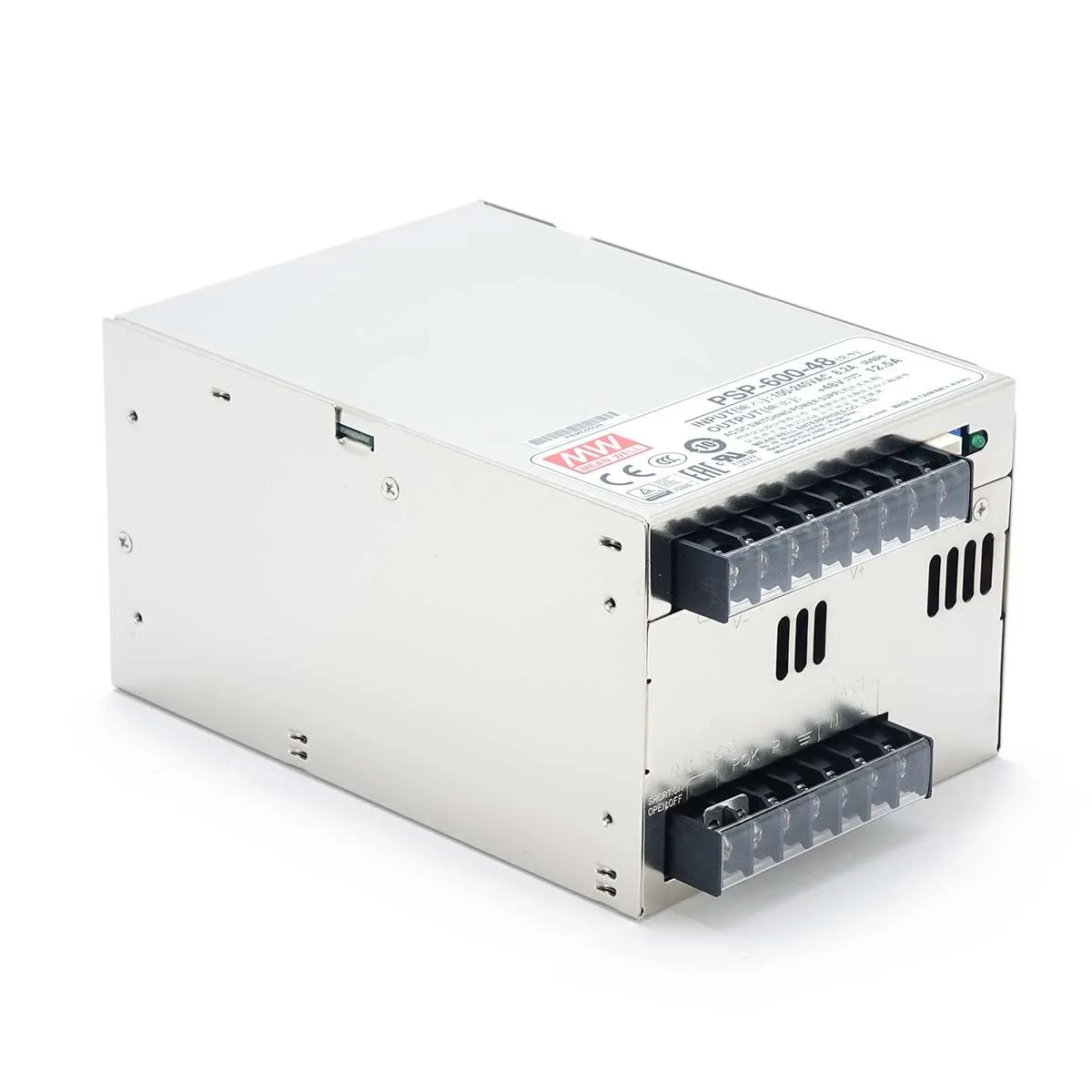

Switching power supply 48V 12,5 600W Meanwell PSP-600-48

Switching power supply Typ Meanwell PSP-600-48
High-quality robust switching power supply with regulated fan.


Output voltage: 48V, but adjustable between approx. 42-50V
Output current: Max. 12.5 A
Efficiency: 90%
All necessary standards are fulfilled.

Features:

MeanWell Industry-Powrsources PSP-600 Series.
The closed design and the short-circuit and overvoltage protection are the characteristics that distinguish the industrial MeanWell switching power supplies.

• closed design with fan, screw terminals
- universal input
- Overload protection through switch-off, auto recovery
- protected against short circuit, overload, overvoltage
- built-in PFC circuit
- low overall height

Technical data:
output voltage: 48 V DC
output voltage range: 41 - 56 V
output current: 12.5 A
power: 600 W
ripple: 240 mVp-p
input voltage: 88 - 264VAC / 124 - 370VDC
effectiveness: 90%
inrush current, max.: 20A/115VAC / 40A/230VAC
working temperature: -40 … +85 °C
Size: 215 x 115 x 30 mm
weight: 1,9 kg
