Start-up package for the conversion of a lathe to prepare it for the connection of an ELS control system.
Includes everything needed to drive the X and Z axes of a lathe, plus an encoder for the main spindle.
Attention: Does NOT contain an ELS control! This must be ordered separately.
The package is suitable for lathes up to approx. 400 kg
The Z-Axis is driven with a 7.2 Nm Closed-Loop Hybridservo here: Morey power, more dynamics!
For heavy machines we refer to the other packages starting from size L

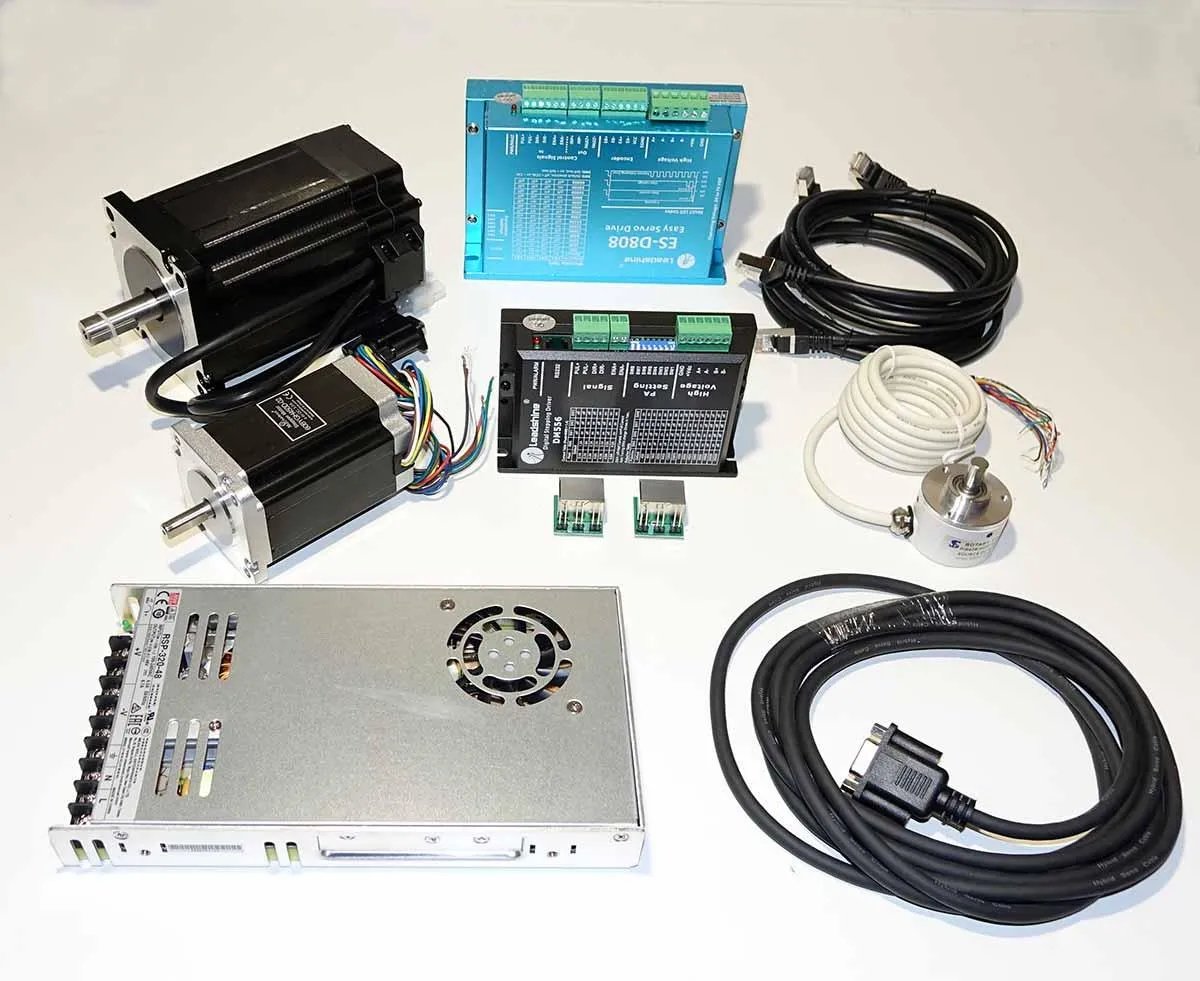

This package contains:
1x Hybrid servodriver Leadshine ES-D808

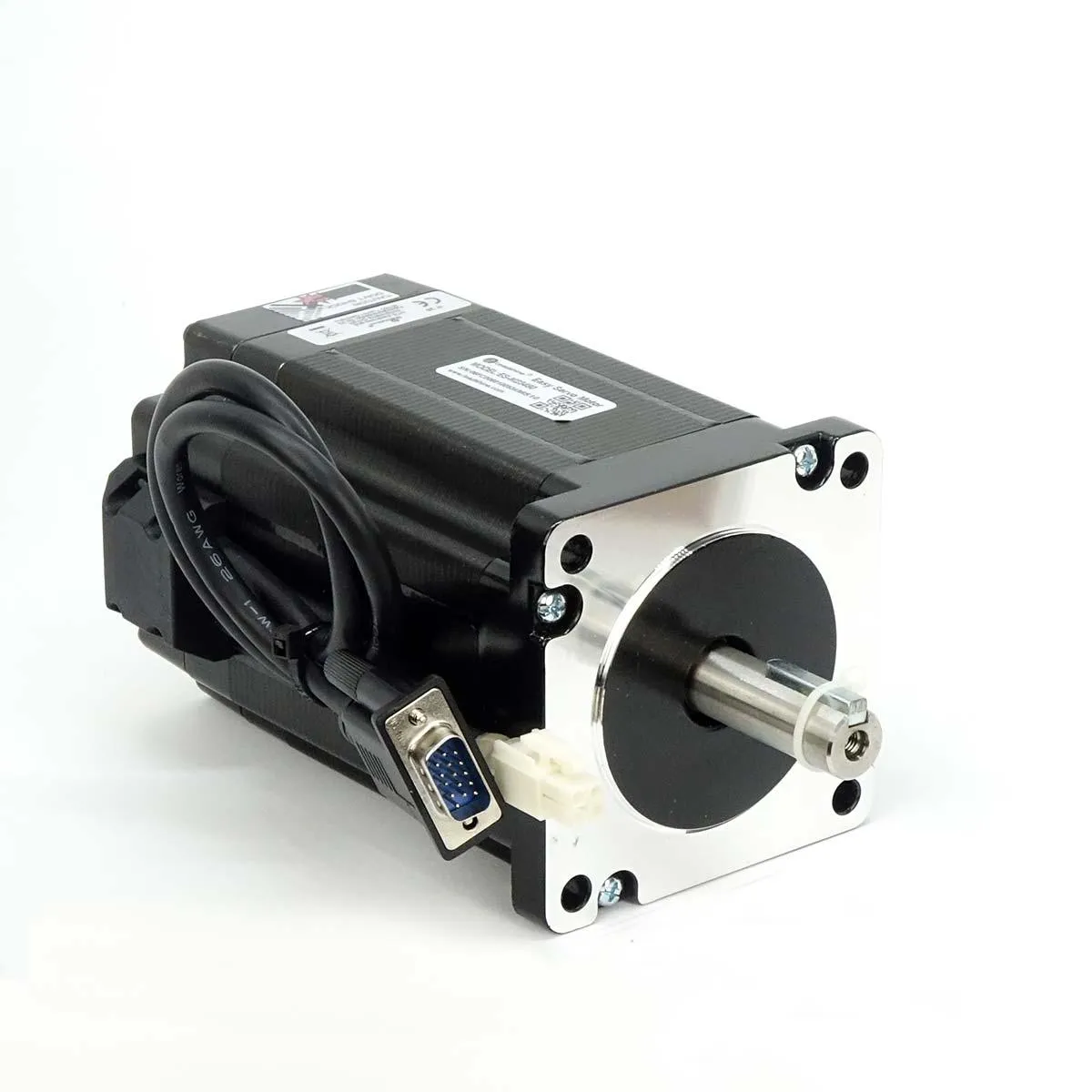

1x Hybrid servo motor ES-M23480 for the Z-axis (7.2Nm)
1x Encoder extension cable 5m
1x stepper motor driver Leadshine DM556

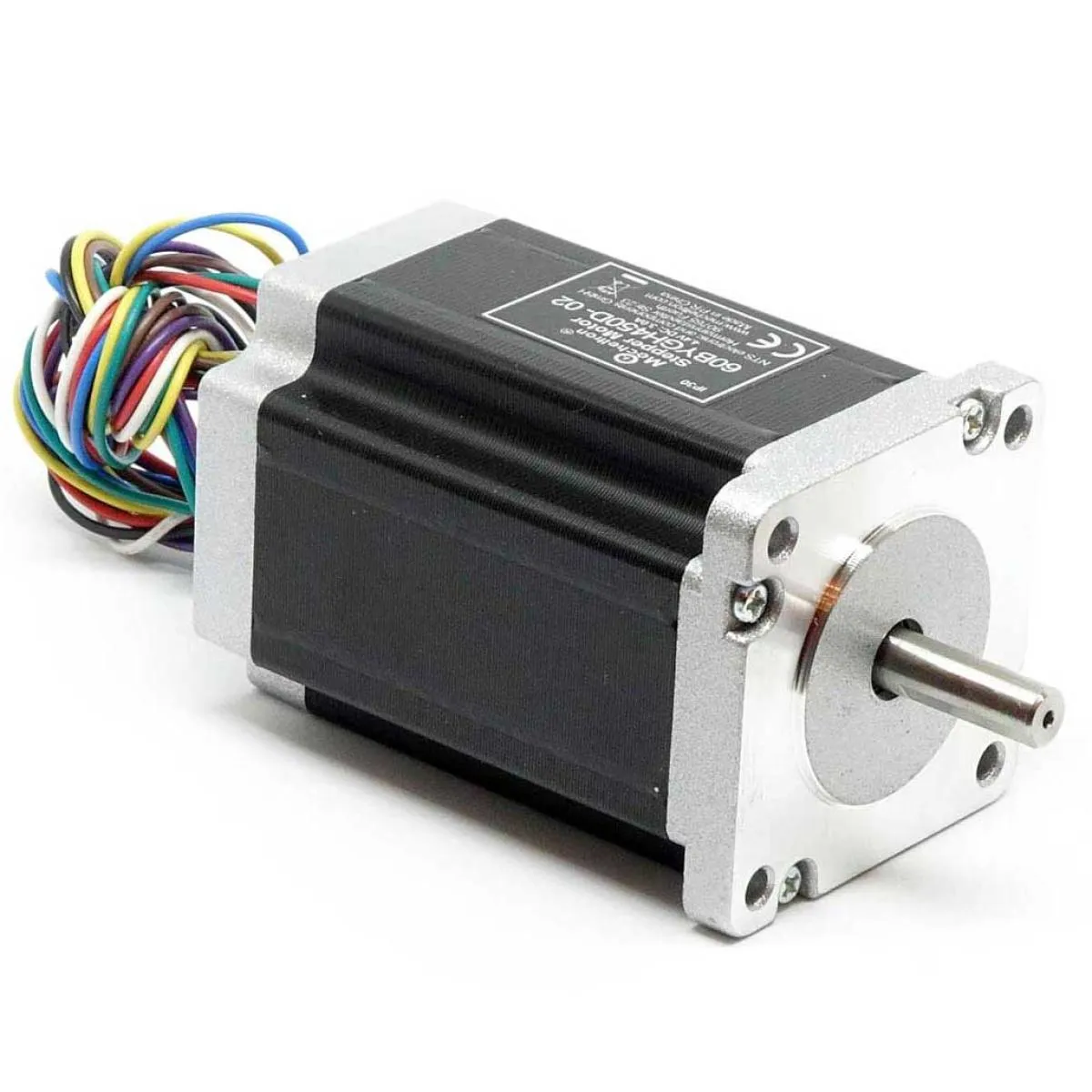

1x stepper motor 60BYGH450D-08 for the X-axis (with 2 shaft ends for mounting a handwheel on the motor)

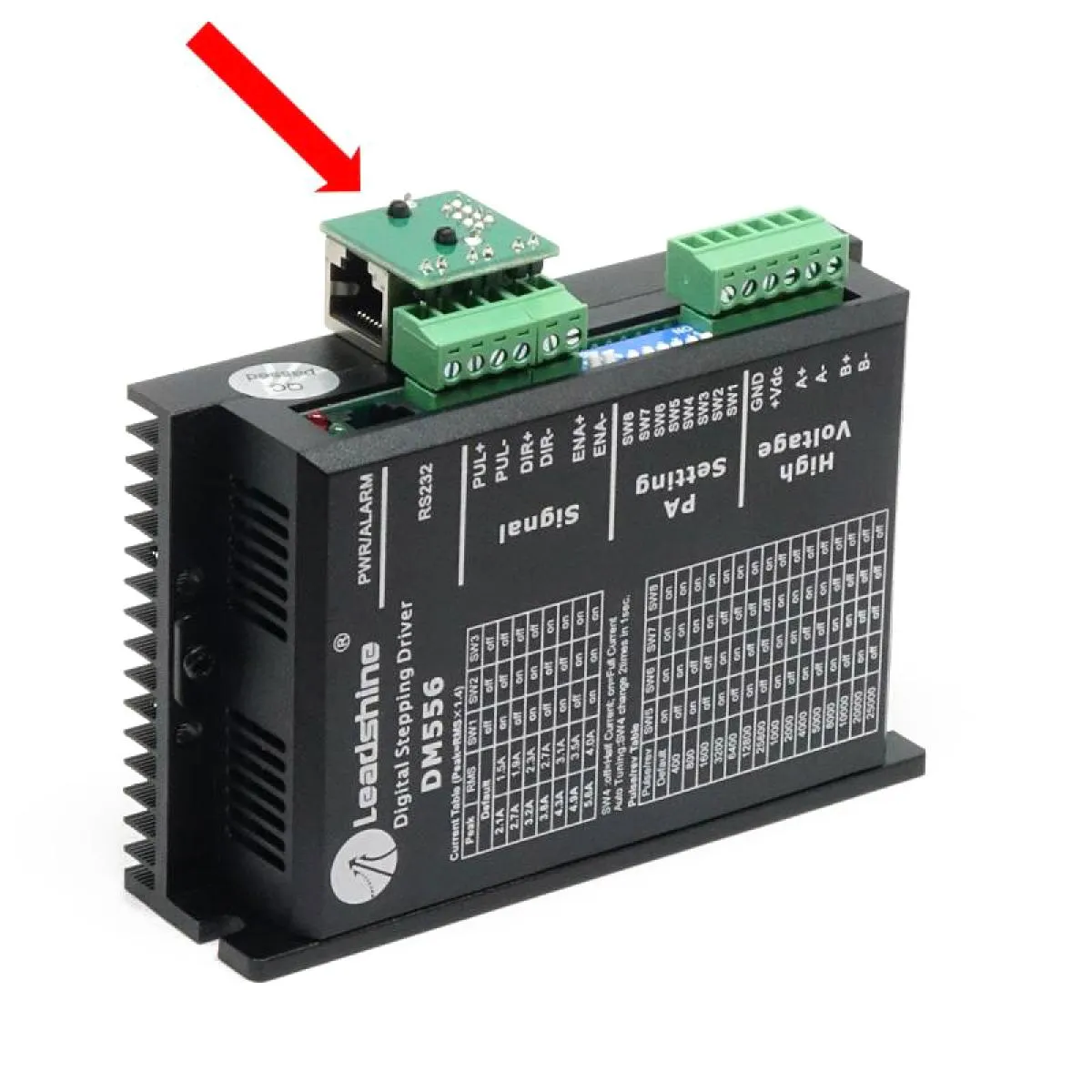

2x RJ45 adapter
2x patch cable RJ45

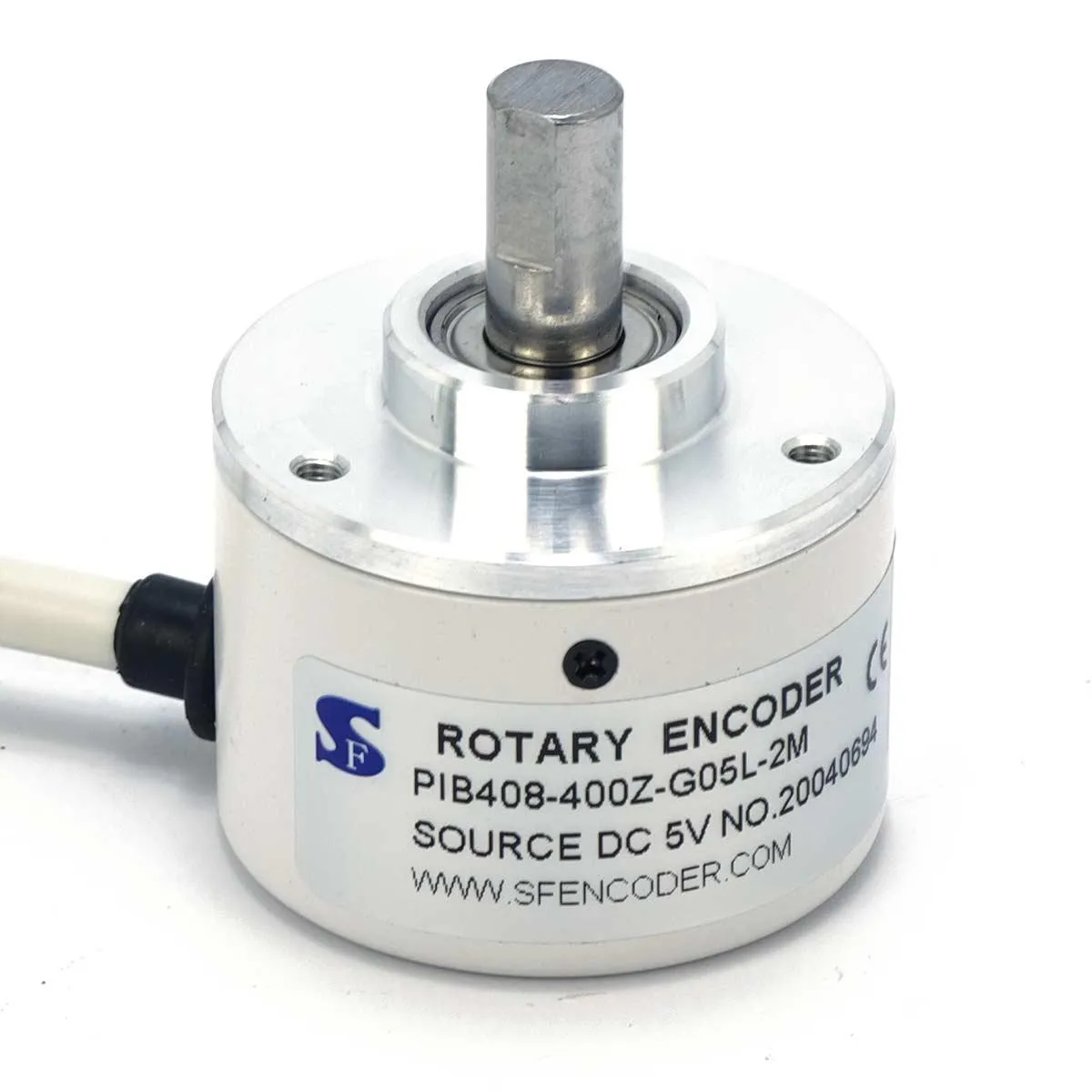

1x Encoder PIB408 with 400 pulses/U

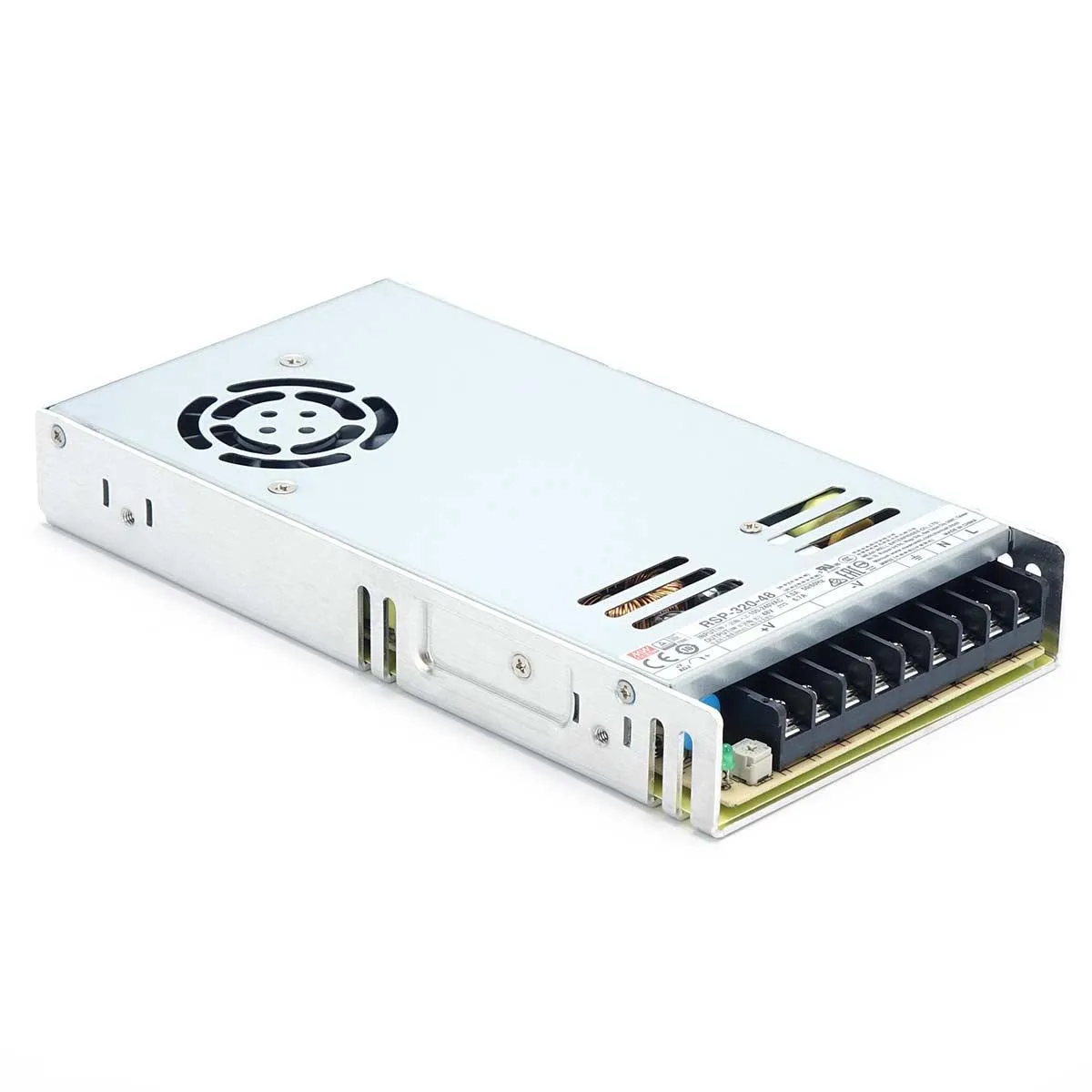

1x power supply Meanwell RSP-320-48 with 48V
